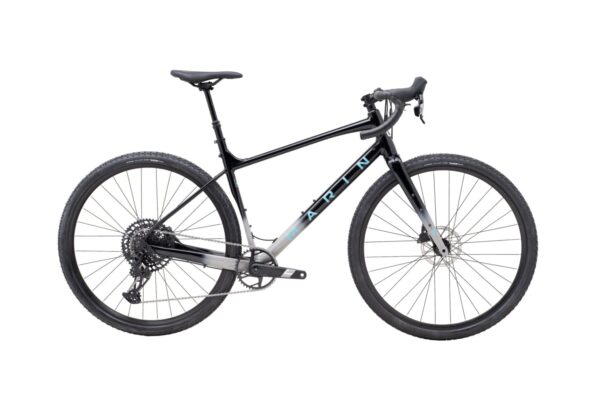

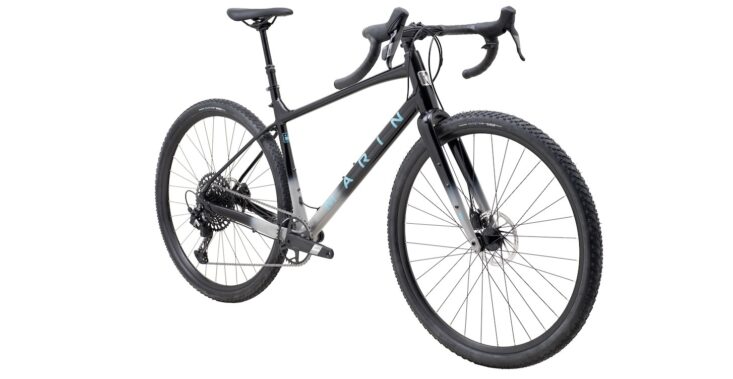

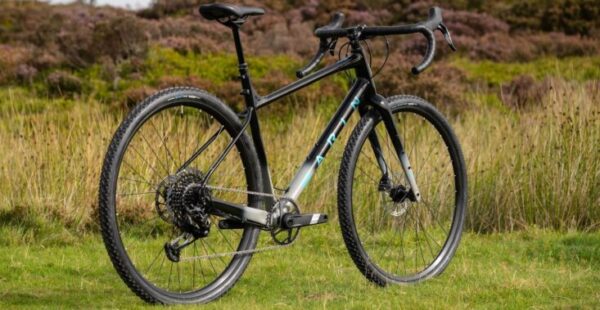

Marin GESTALT XR

Description

SPECIFICATIONS

• FRAME

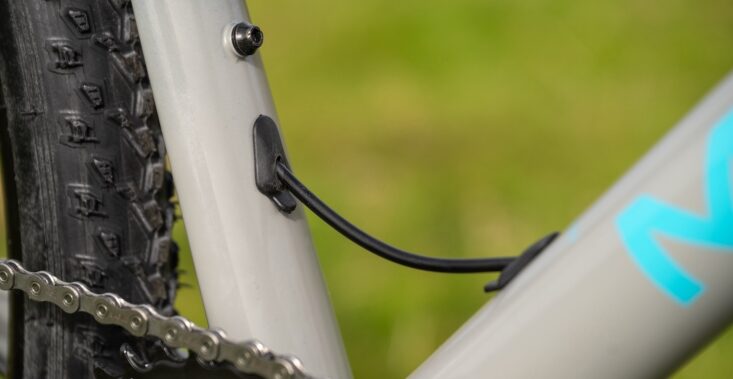

  Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

• FORK

  Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

• RIM

  Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible

• HUB REAR

  Forged Aluminum Alloy, 142x12mm, Disc, 32H

• HUB FRONT

  Forged Aluminum Alloy, 100x12mm, Disc, 32H

• SPOKES NIPPLES

  14g Black Stainless Steel

• TIRES

  Vee Tire Co., Rocket Man, 700×44, Tubeless Compatible

• DERAILLEUR REAR

  SRAM Apex 1 12-Speed

• DERAILLEUR FRONT

  –

• SHIFT LEVER

  SRAM Apex 1 1×12-Speed

• CRANKSET

  SRAM Apex 1, 40T

• BOTTOM BRACKET

  SRAM DUB BSA

• CHAIN

  SRAM NX

• CASSETTE

  SRAM CS-XG-1275, 10-52T

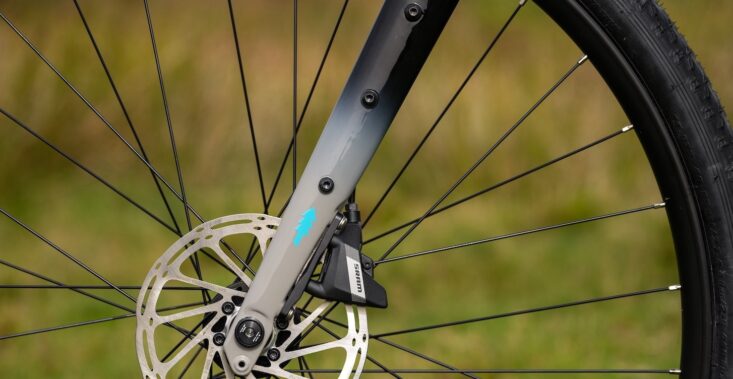

• BRAKES FRONT

  SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor

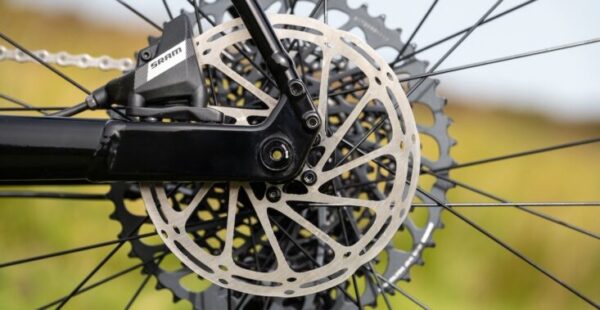

• BRAKES REAR

  SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor

• BRAKE LEVERS

  SRAM Apex 1 Hydraulic Disc

• HANDLEBAR

  Marin Butted Alloy, Compact 16º Flared Drop

• STEM

  Marin 3D Forged Alloy

• GRIPS

  Marin Shock Absorbing Perforated Tape

• HEADSET

  FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

• SEATPOST



  TranzX YSP38J, Size S-M 70mm, Size L-XL 110mm Travel, 27.2mm



• SADDLE

  Marin Beyond Road Concept Elite

• PEDALS

  –

• EXTRAS

  Bolt-On Thru-Axles F and R
