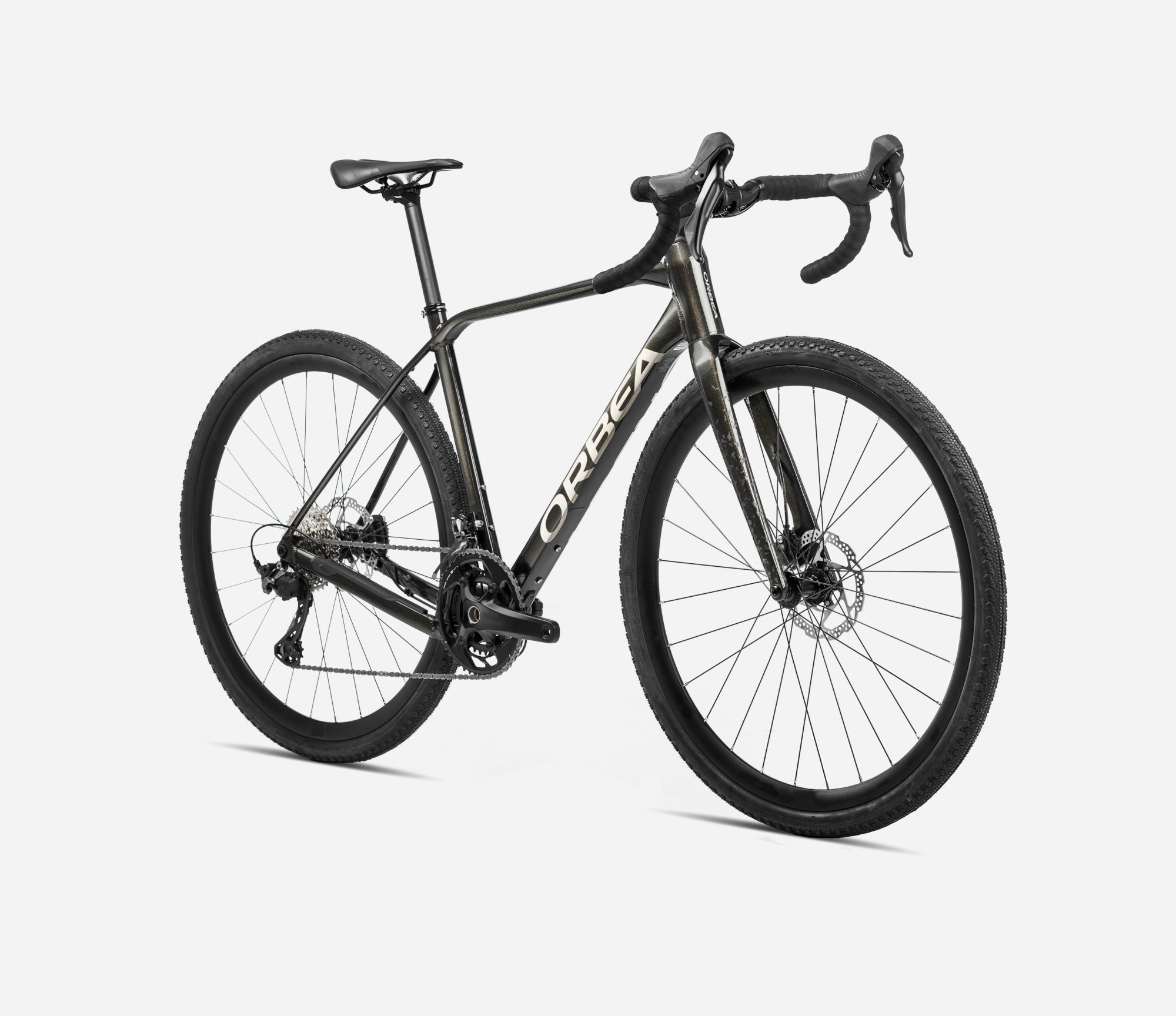

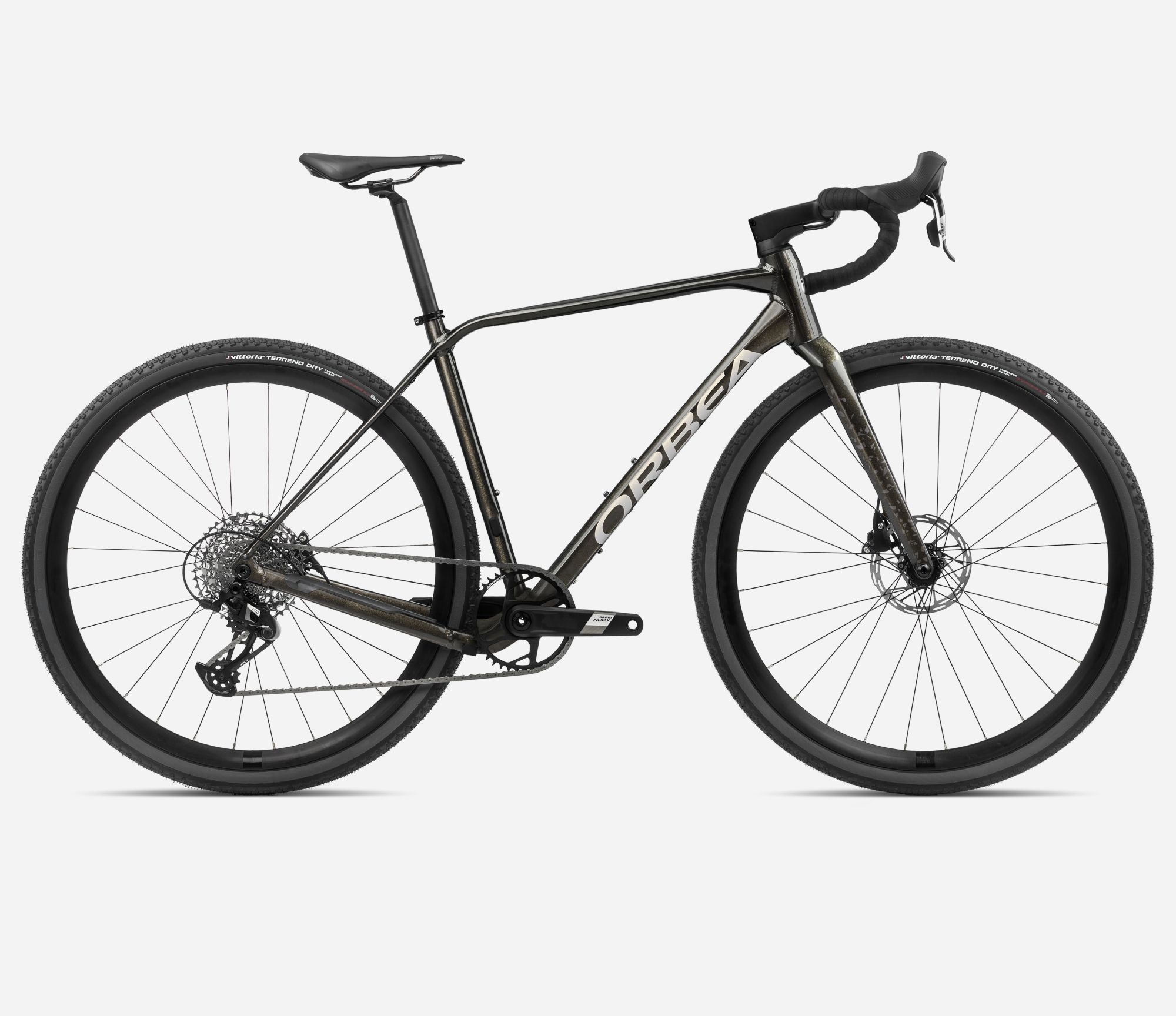

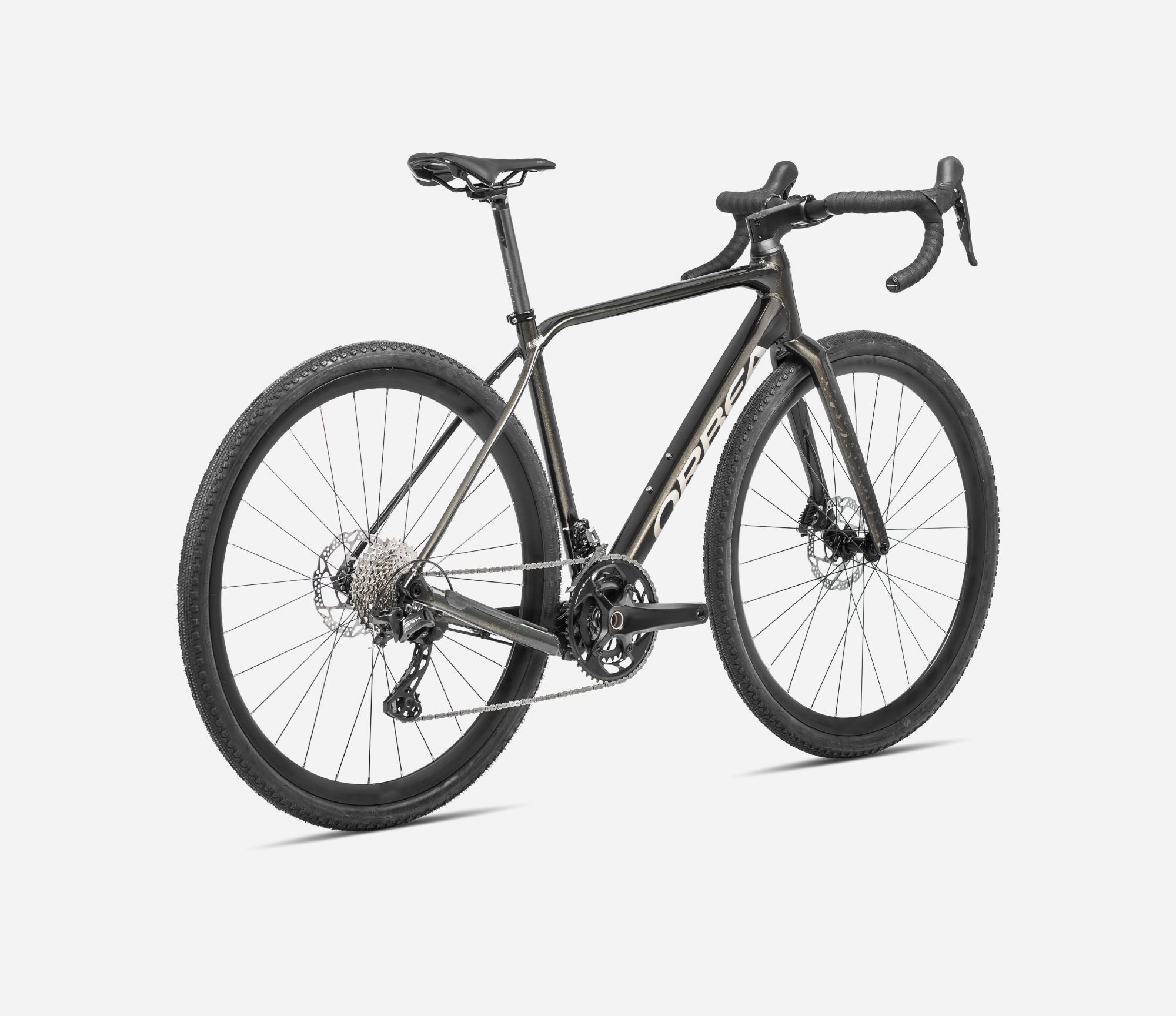

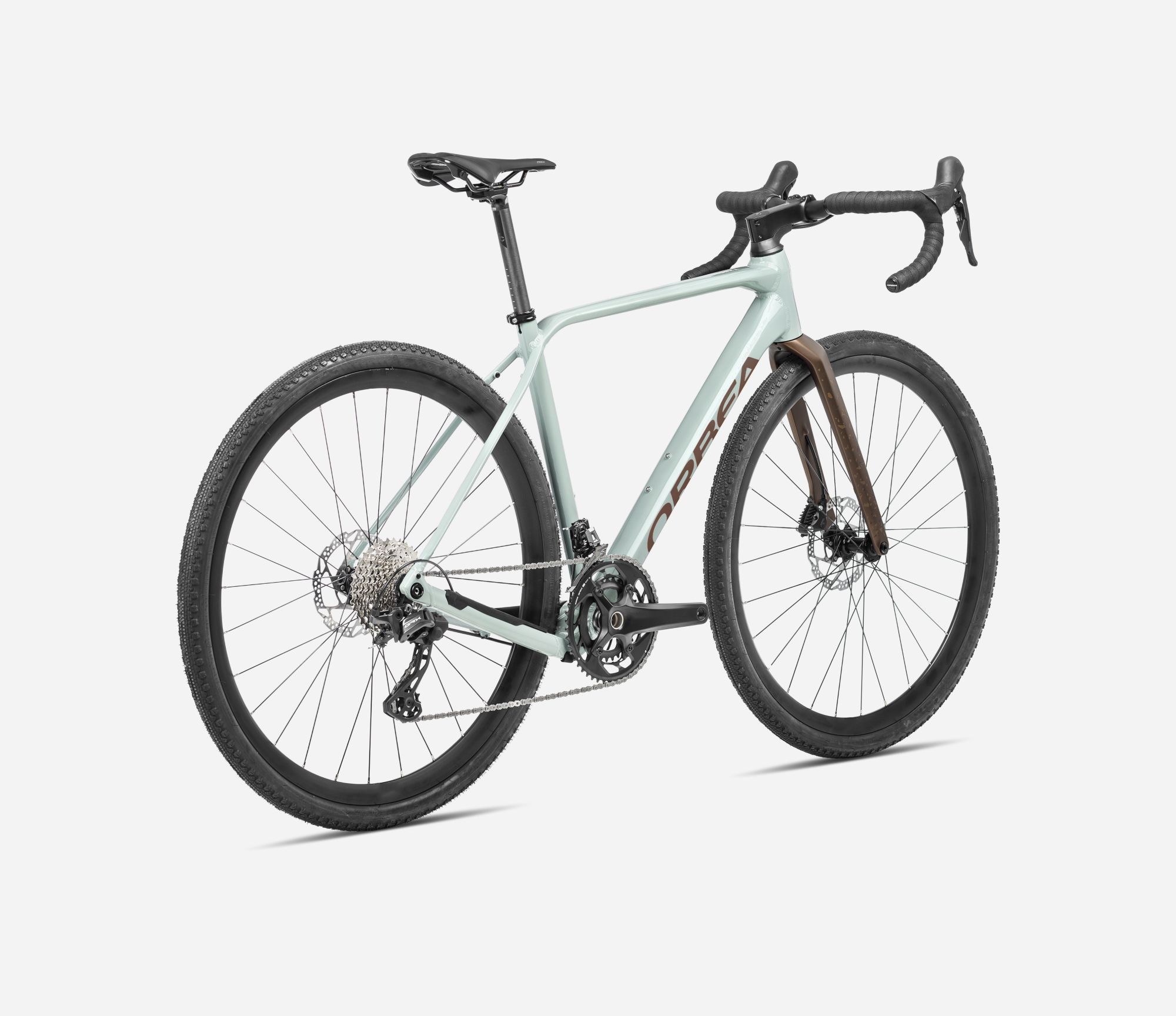

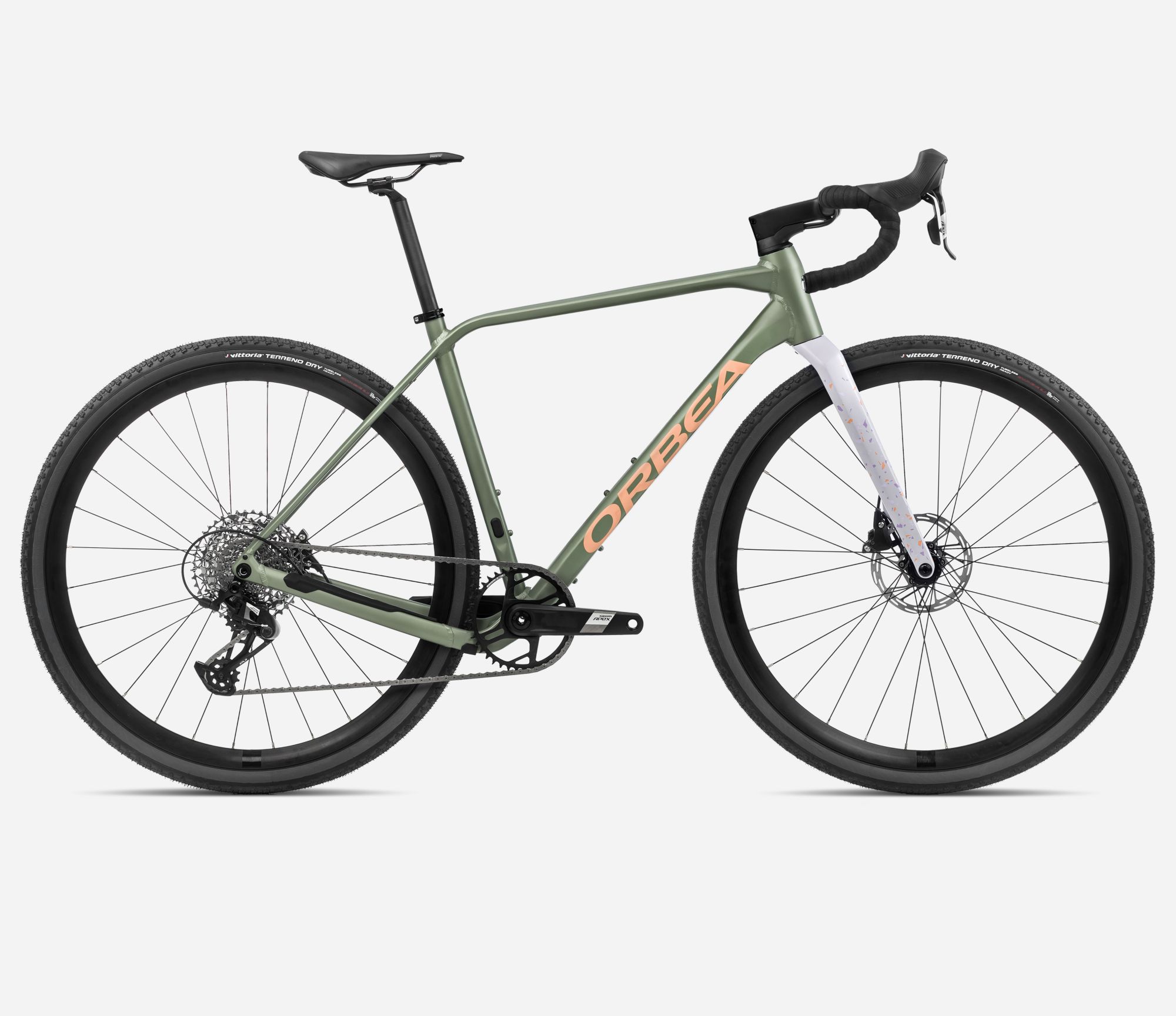

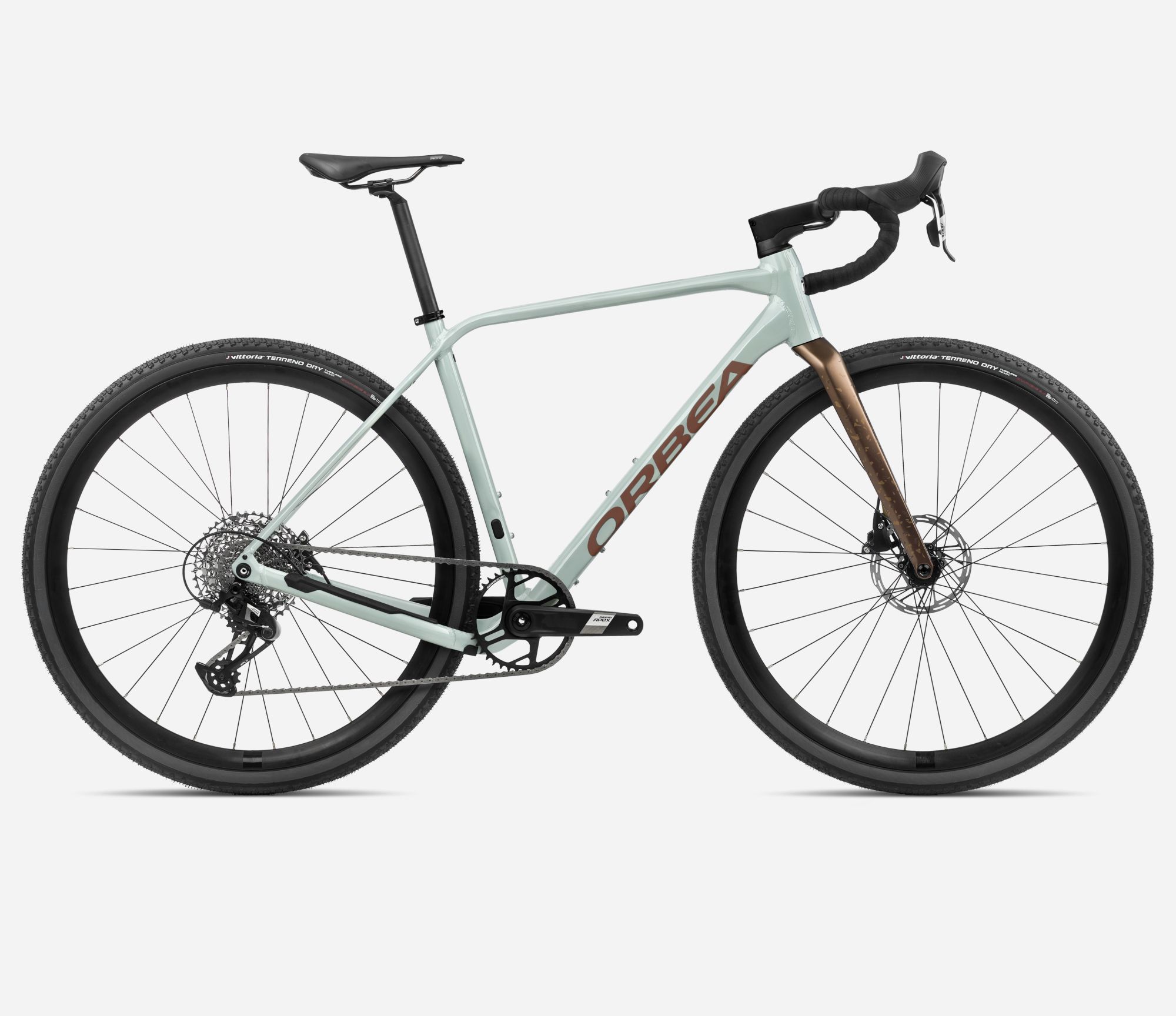

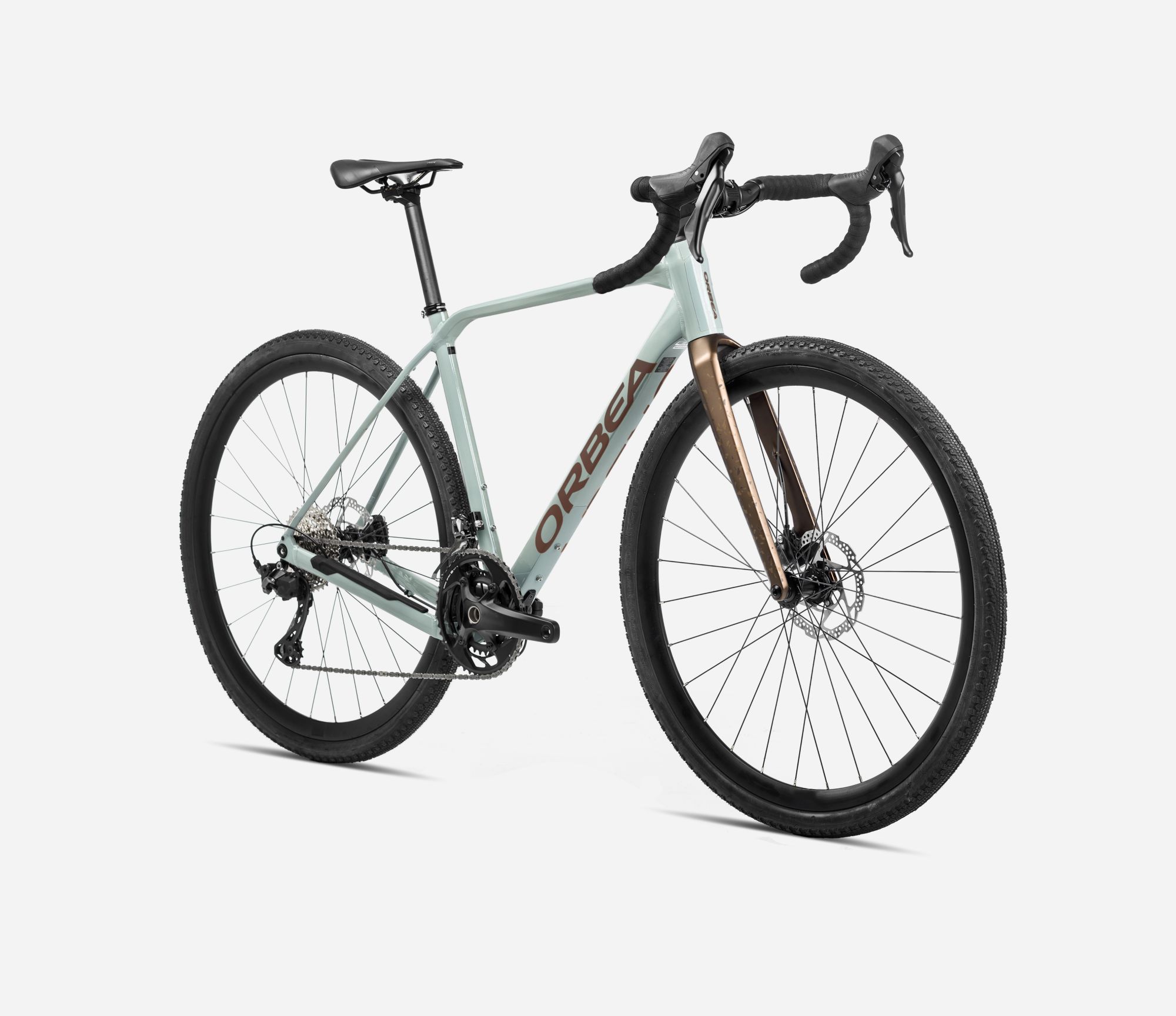

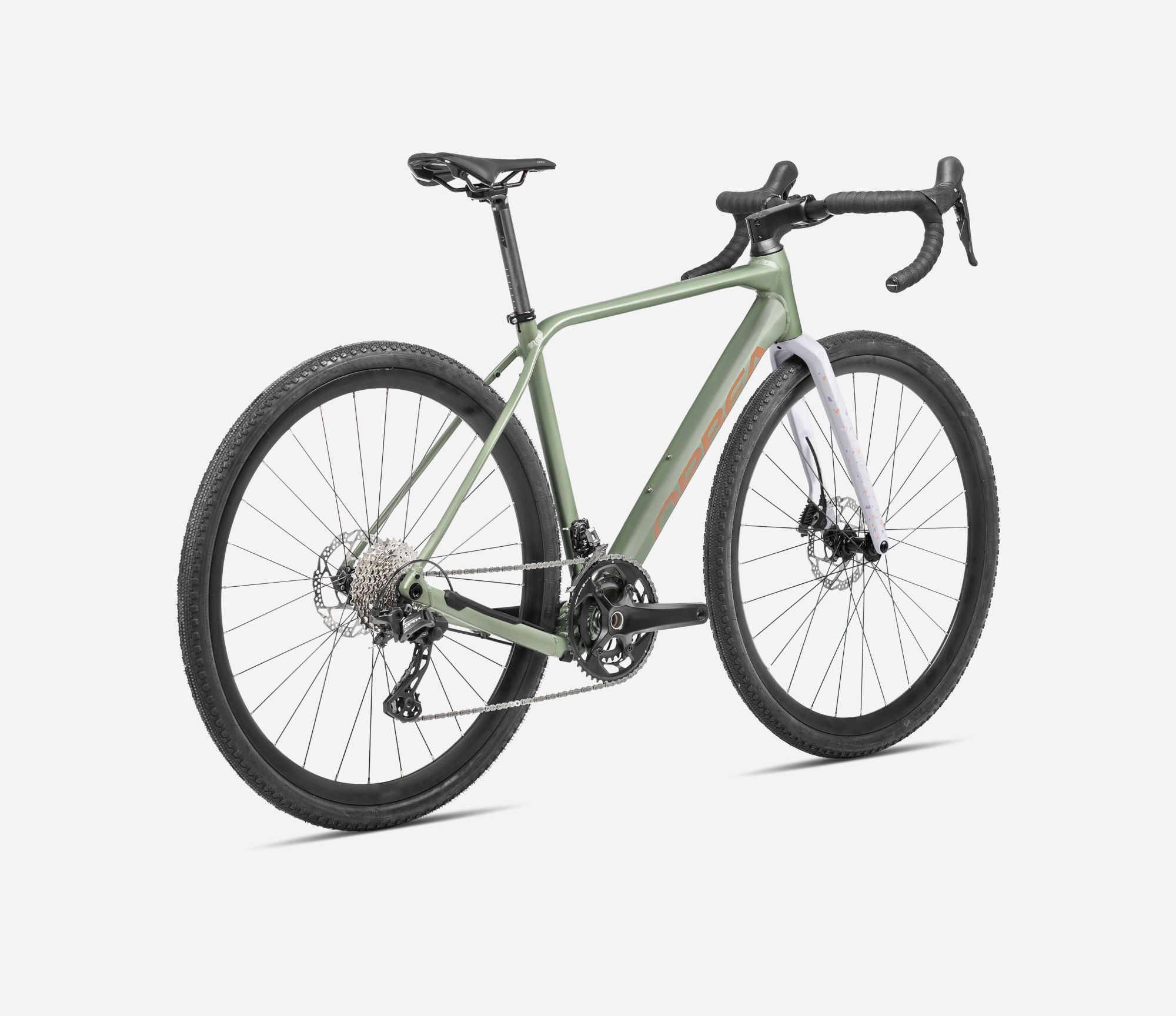

Name: Orbea TERRA H41 1X
SKU: 7692
Availability: InStock

GRAVEL FROM THE GROUND UP

Designed from the ground up for gravel, Terra isn’t a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you.

Description

FRAMESET

FRAME

Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5″, PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system

FORK

Orbea Terra ICR, full carbon, 1-1/8″ – 1,5″ tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1

HEADSET

FSA 1-1/2″ Integrated Aluminium Cup

DRIVETRAIN

CRANKSET

SRAM Apex 1 DM Dub Wide 40t Steel

SHIFTERS

SRAM Apex

CASSETTE

SRAM PG-1231 XPLR 11-44t 12-Speed

REAR DERAILLEUR

SRAM Apex XPLR 12s

CHAIN

SRAM Apex 12-Speed

COCKPIT

HANDLEBAR

OC Gravel GR31-R, Rise 15, Reach 70, Drop 110

STEM

OC Road Performance RP21, -6º

BRAKES

SRAM Apex Hydraulic

BRAKES CONFIGURATION

WHEELS

Alloy, Tubeless, 700c, 21c

TYRES

Vittoria Terreno Dry Gravel 700x38c

FRONT WHEEL AXLE

Orbea Thru Axle 12x100mm M12x2 P1 Solid

REAR WHEEL AXLE

Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded

COMPONENTS

SEATPOST

SP 0.2 Carbon, 27.2mm, Setback 20

SADDLE

Prologo Akero AGX STN size 155mm

ACCESSORIES

MUDGUARD

HANDLEBAR TAPE

Orbea Eva

Color

Artichoke (Matt) – Lilac (Matt), Blue Stone (Gloss) – Copper (Matt), Infinity Green – Ivory White (Gloss)

Size

Large, Medium, Small, XL, XX-Large, XS
