Description

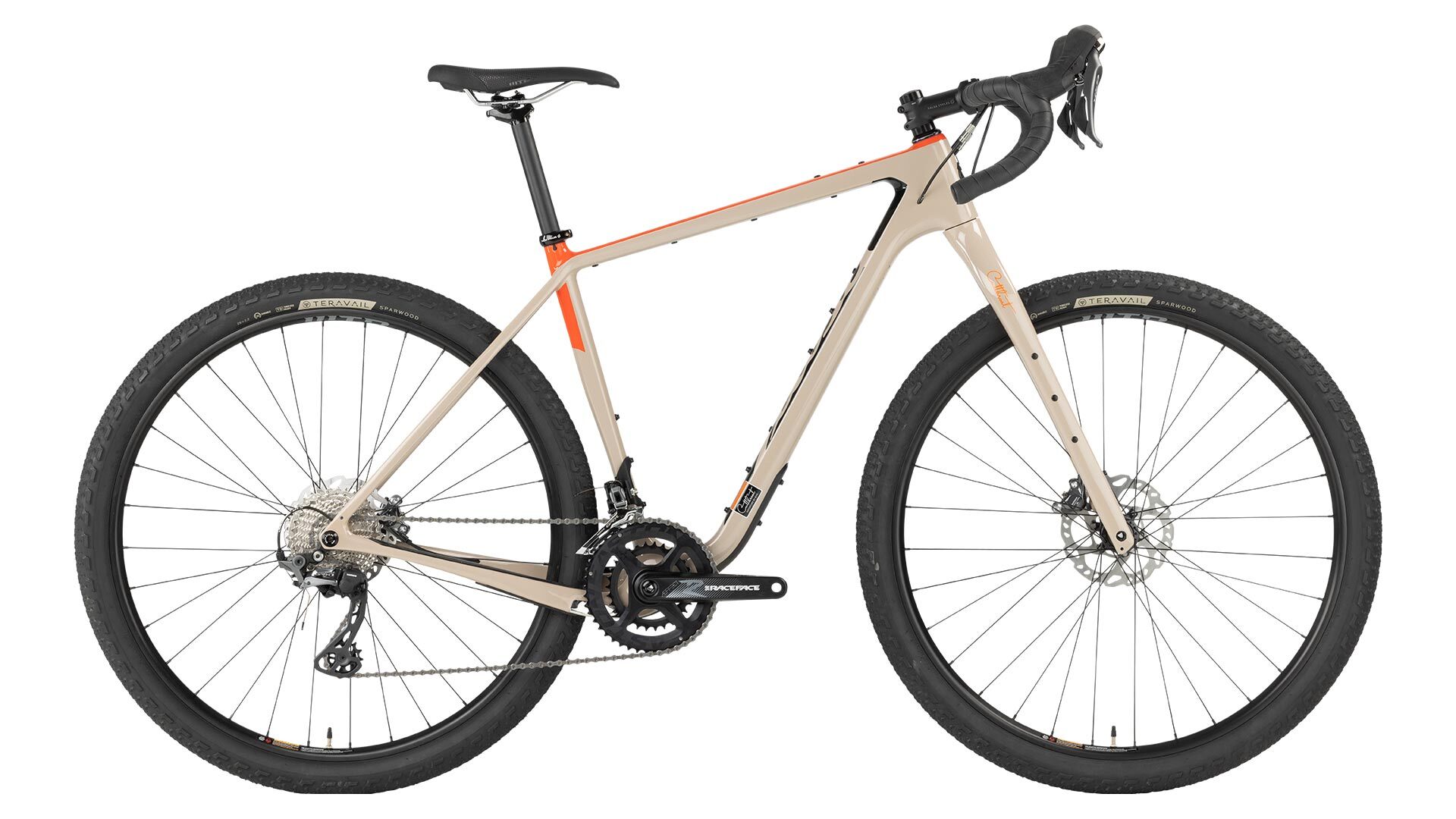

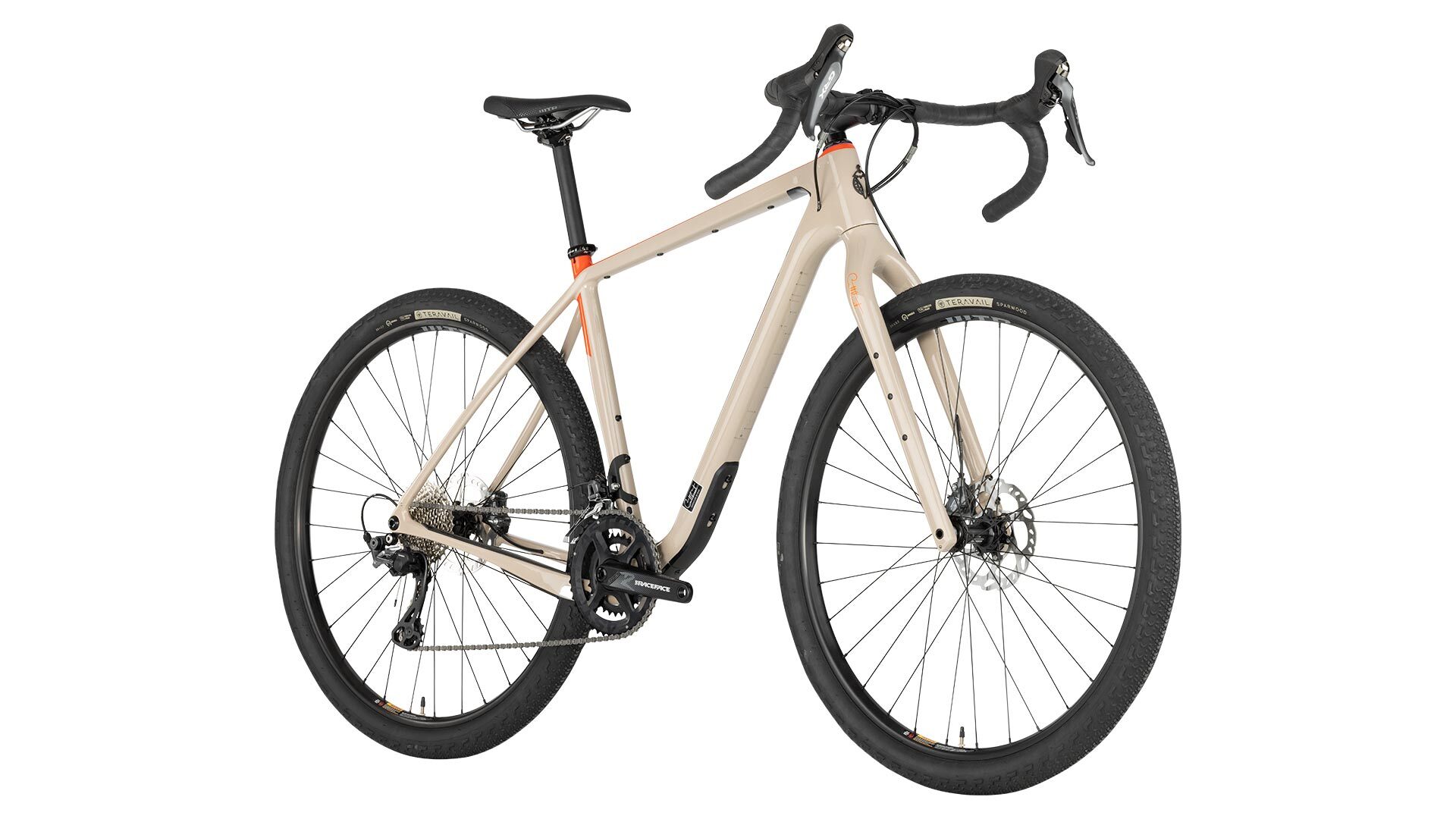

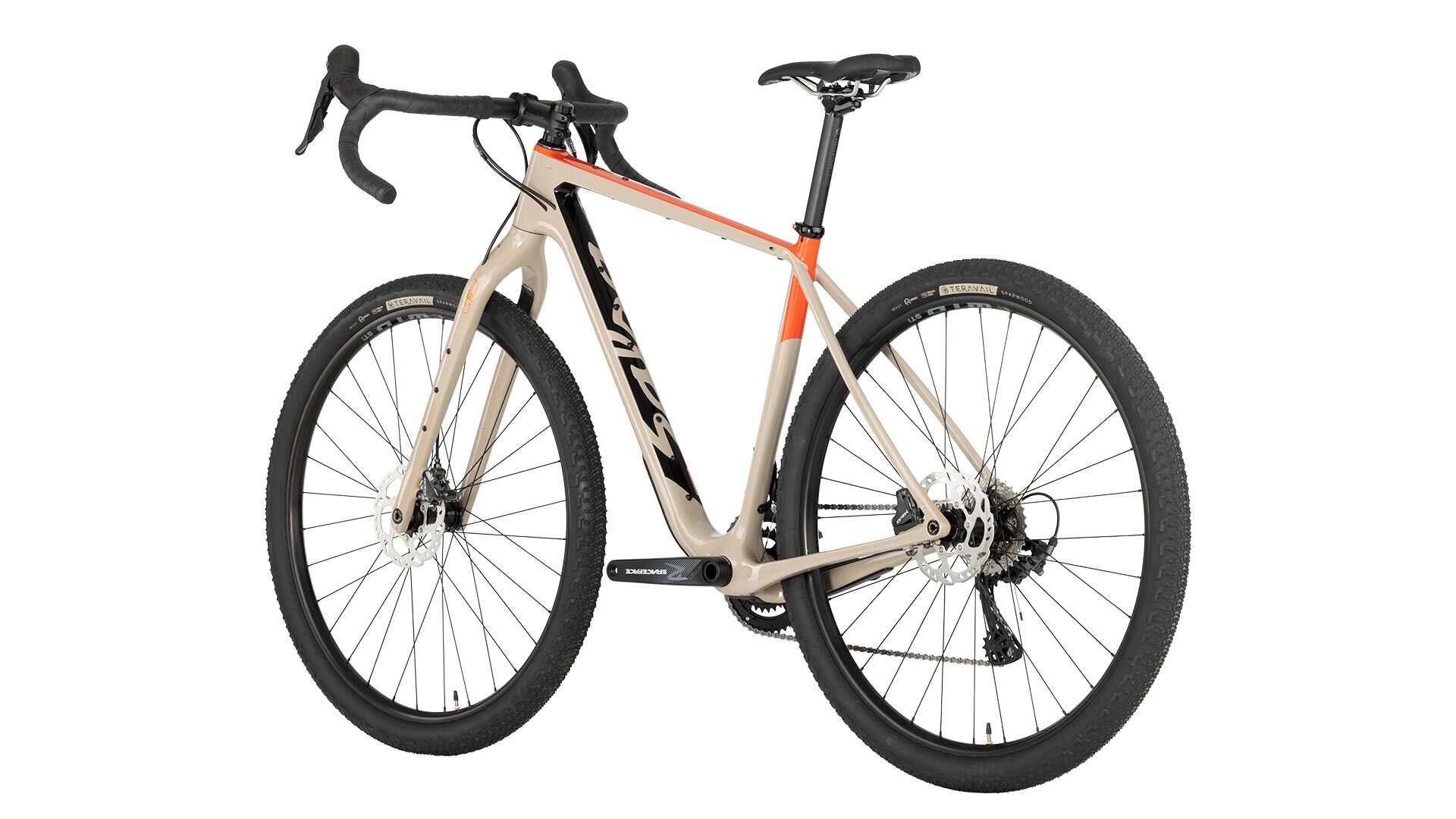

With trail-taming compliance and abrasion-resistant plates in high-wear areas, the Cutthroat Carbon fork is designed for the rigors of rides that cover multiple road surfaces in unpredictable conditions
The Class 5™ Vibration Reduction System revolves around seatstays with a tall, thin, vertically-oriented profile that promotes vertical compliance by allowing the seatstays to “flex” outwards on impacts. Horizontally-oriented chainstays work to resist torque and maintain a laterally stiff rear end. The lack of seatstay and chainstay bridges allows the full length of the stays to contribute to flexibility. A rear thru-axle delivers precise tracking while allowing the seatstays to provide incredible compliance
- Frame
- Cutthroat Carbon
- Fork
- Cutthroat
- Color
- Tan
- Rear Shock
- N/A
DRIVETRAIN
- Front Derailleur
- Shimano GRX RX810
- Rear Derailleur
- Shimano GRX RX810
- Cassette
- Shimano HG700 11–34t, 11-speed
- Chain
- Shimano HG601
- Crankset
- Race Face Aeffect-R, Easton 46/30t chainrings
- Shifter
- Shimano GRX RX810
- Brakes and Rotors
- Shimano GRX RX810, Shimano RT70 rotors (Center Lock, 160 mm)
COMPONENTS
- Headset
- Cane Creek 40
- Stem
- Salsa Guide
- Handlebar
- Zoom DR-AL-199BTFOV
- Grips/Bar Tape
- Anti-Slip Silicone Tape
- Seatpost
- Salsa Guide
- Saddle
- WTB SL8 Medium Steel SL
WHEELS
- Front Wheel
- Shimano Deore XT 15 x 110 mm hub, WTB ST i25 rim, 32h
- Rear Wheel
- Shimano Deore XT 12 x 148 mm hub, WTB ST i25 rim, 32h
- Tires
- Teravail Sparwood 29 x 2.2″, 60 tpi, tubeless compatible, Durable casing
WEIGHT
- Complete Bike Weight
- 24 lb 3 oz (56 cm frame)
- Design Wheel x Tire Size
- 29 x 2.25″ (29 x 2.4″ Max) (Some front derailleurs may reduce tire clearance. Check manufacturer’s specifications to confirm clearance before installing.)
- Susp Fork Length (Travel)
- 506 mm (100 mm Travel)
- Rigid Fork Length
- 483 mm
- Fork Offset
- 51 mm
- Front Spacing
- 110 x 15 mm Thru-axle
- Front Brake (Rotor)
- Flat mount (160–180 mm), flat mount frame standard (35 mm thickness), 42 mm bolt length
- Front Rack Mounts
- Yes, lowrider compatible. Salsa Down Under rack recommended.
- Fork Accessory Mounts
- Yes, one set of Three-Pack mounts on each fork leg
- Headset, Upper
- IS41
- Headset, Lower
- IS52
- Seatpost
- 27.2 mm
- Seat Collar
- 32.0 mm
- Dropper Compatible (Routing)
- Yes, internal
- Front Derailleur Type
- Road, braze-on, 2x, bottom-pull
- Bottom Bracket
- Press Fit BB92, 41 x 92 mm
- Crankset (Max & Min Ring)
- 1x MTN Boost: 40t Max; 2x RD Boost outer ring: 46–50t, inner ring: 30–36t *Oval chainrings subtract 2t from max*
- Rear Brake (Rotor)
- Flat mount (140–160 mm), flat mount frame standard (25mm Thickness), 32 mm bolt length
- Rear Spacing
- 148 x 12 mm Thru-axle
- Rear Axle Size
- Ø12 x 174, TP=1.5, TL=20
- Derailleur Hanger
- QBP #FS2322
- Rear Rack Mounts
- Yes, Salsa Rack Lock seatpost collar required. Salsa Wanderlust Rack recommended. Salsa Bent Rack Struts (part #RK8030) required for installation on 58 cm and 60 cm frames. Not compatible with Salsa Wanderlust HD Rack
- Rear Fender Mounts
- n/a
- Water Bottle Mounts
- Frames up to 54cm: 2 in main triangle. Frames 56cm and larger: 3 in main triangle.
- Under Downtube Mount
- Yes, two pair.
- Top Tube Mounts
- Yes, compatible with Salsa Top Tube bag.
- Internal Dropper Post Routing
- 1x mechanical drivetrain: Route the dropper post cable through the drive side of the down tube. Di2 drivetrains: Mount the Di2 battery in the seatpost, then route the dropper post cable through the drive side of the downtube.
- External Dropper Post Routing
- 1x and 2x mechanical and Di2 drivetrains:Route the dropper post cable through the dynamo rear light holes on the non-drive side of the top tube.
