Description
It’s right for you if…

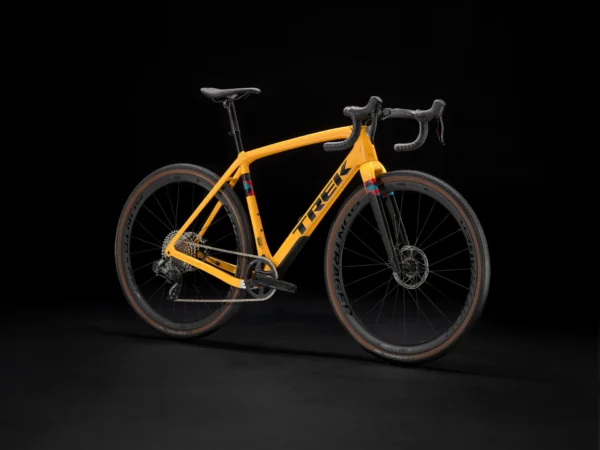

You have big dreams for the likes of The Mid-South, Belgian Waffle Rides and UNBOUND Gravel, and know you’ll need a seriously dialled-in gravel bike for these epic adventures. You want our most advanced Checkpoint frame that’s made specifically for gravel racing or fast gravel adventures.
The tech you get
A 700 Series OCLV Carbon frame with IsoSpeed and carbon armour, a progressive geometry that’s stable at speed and efficient when you’re grinding up a climb, internal storage, hidden cables that won’t interfere with bags and an integrated frame bag and mudguard mounts. Plus, a carbon fork, 1×12 SRAM Rival AXS wireless electronic drivetrain with a wide-range cassette and Bontrager Aeolus Pro 3V OCLV Carbon wheels with wide 700x40c gravel tyres that provide extra traction and stability. Fits up to 45 c tyres.
The final word
This ultra-light, meticulously-crafted Checkpoint frame is designed and built for performance and comfort during gruelling gravel races or long and fast gravel rides. It’s ultra-light and fast, and comes with premium parts like an advanced wireless electronic drivetrain and carbon wheels.
Why you’ll love it

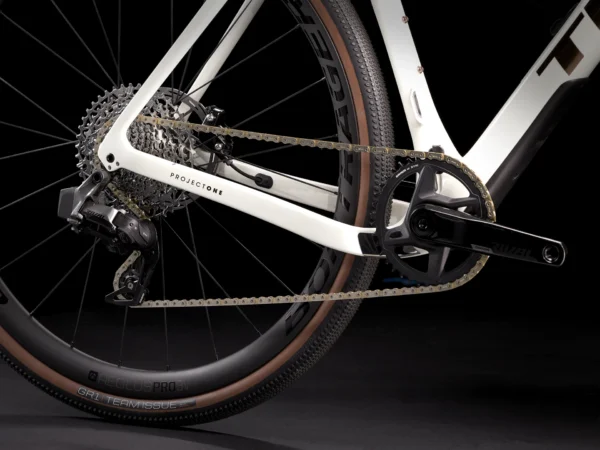

- The SRAM Rival AXS wireless drivetrain won’t leave a hole in your wallet, and you can fully customise your shift logic using the AXS app
- The IsoSpeed decoupler soaks up fatiguing bumps without bouncing you around
- Massive tyre clearance means you can use tyres up to 45c for extra traction and stability in any condition
- A sleek internal storage compartment gives you a versatile spot to stow tools and gear

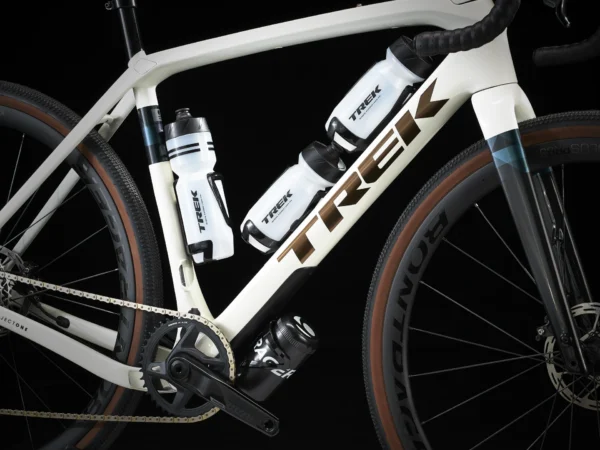

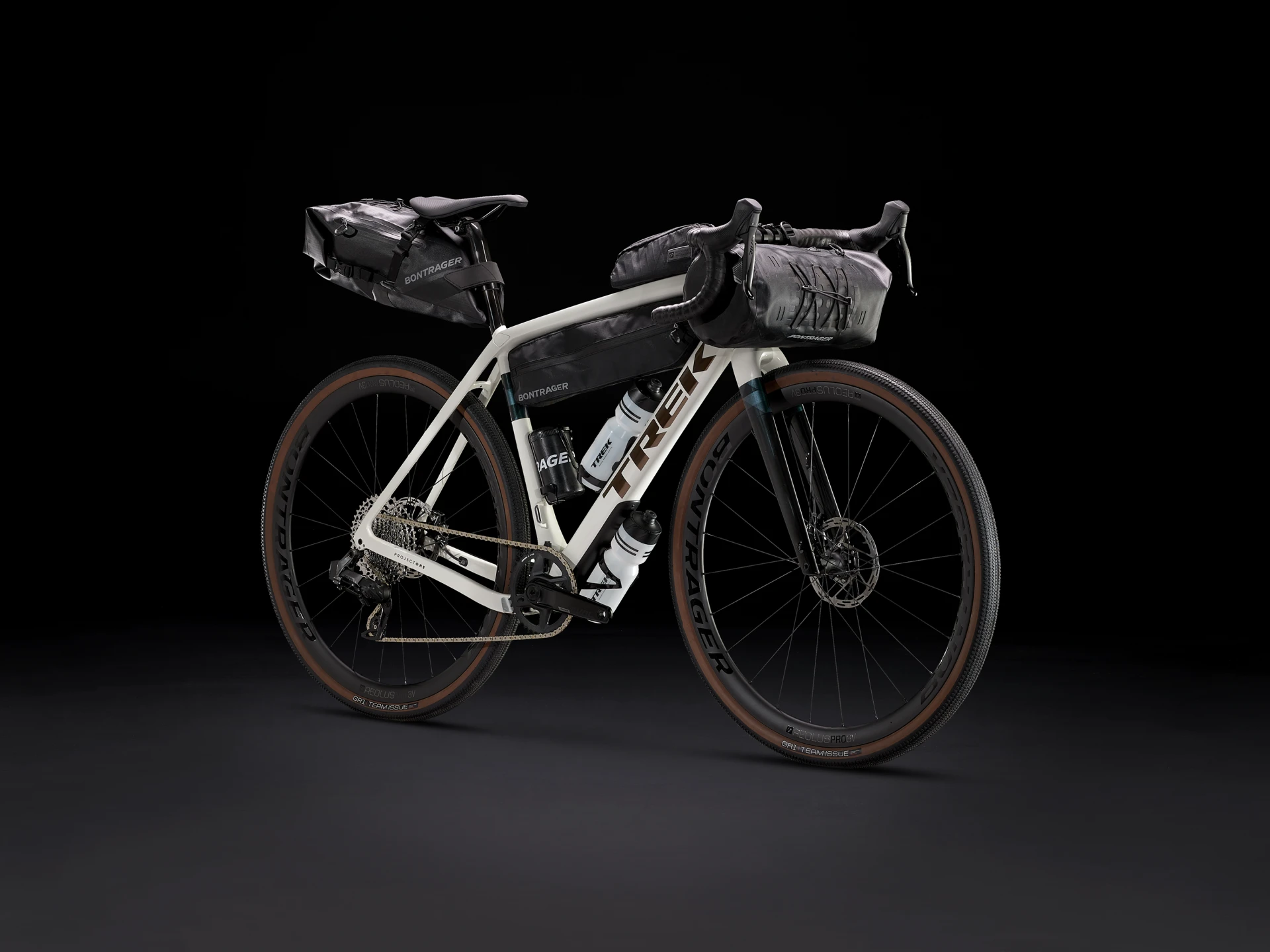

- Integrated frame bag mounts and mudguard mounts make it easy to carry gear and water
| Frame | 700 Series OCLV Carbon, IsoSpeed, downtube storage door, internal routing, Ride Tuned seat mast, chain keeper, T47 BB, mudguard mounts, integrated frame bag mounts, flat-mount disc, 142×12 mm thru axle |
|---|---|

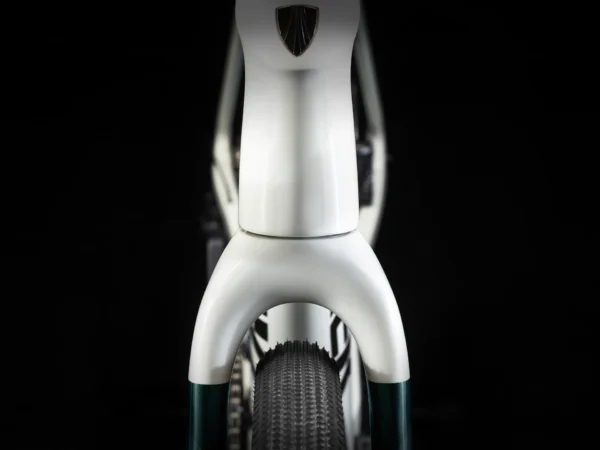

| Fork | Checkpoint carbon, tapered carbon steerer, mudguard mounts, flat-mount disc, 12×100 mm thru axle |
| Frame fit | Gravel |
| Wheel front | Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 100 x 12 mm thru axle |
|---|---|
| Wheel rear | Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 142×12 mm thru axle |
| Tyre | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700×40 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | See service manual |
| Battery | SRAM eTap battery pack (with charger) |
|---|
| Shifter | SRAM Rival eTap AXS, 12-speed |
|---|---|
| Rear derailleur | SRAM Rival XPLR eTap AXS, 44T max cog |
| *Crank | Size: 49 SRAM Rival AXS w/ power meter, 40T, DUB Wide, 165 mm length |
| Size: 52 SRAM Rival AXS w/ power meter, 40T, DUB Wide, 170 mm length |
|
| Size: 54, 56 SRAM Rival AXS w/ power meter, 40T, DUB Wide, 172.5 mm length |
|
| Size: 58, 61 SRAM Rival AXS w/ power meter, 40T, DUB Wide, 175 mm length |
|
| Bottom bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM XG-1251, 10-44, 12-speed |
| Chain | SRAM Rival, 12-speed |
| Max. chainring size | 1x: 46T, 2x: 50/37 |
| *Saddle | Size: 49, 52 Bontrager Verse Short Elite, hollow stainless steel rails, 155 mm width |
|---|---|
| Size: 54, 56, 58, 61 Verse Short Elite, hollow stainless steel rails, 145 mm width |
|
| *Seatpost | Size: 49, 52, 54, 56 Bontrager carbon seat mast cap, 5 mm offset, short length |
| Size: 58, 61 Bontrager carbon seat mast cap, 5 mm offset, tall length |
|
| *Handlebar | Size: 49 Bontrager Pro IsoCore VR-SF, 38cm |
| Size: 52 Bontrager Pro IsoCore VR-SF, 40cm |
|
| Size: 54, 56 Bontrager Pro IsoCore VR-SF, 42cm |
|
| Size: 58, 61 Bontrager Pro IsoCore VR-SF, 44cm |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: 49 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Size: 52, 54 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
| Size: 56, 58 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
| Size: 61 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
|
| Brake | SRAM Rival hydraulic disc |
| Brake rotor | SRAM Paceline, rounded, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
| Bag | Bontrager BITS Internal Frame Storage Bag |
|---|
| Weight | 56 – 8.90 kg / 19.63 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
